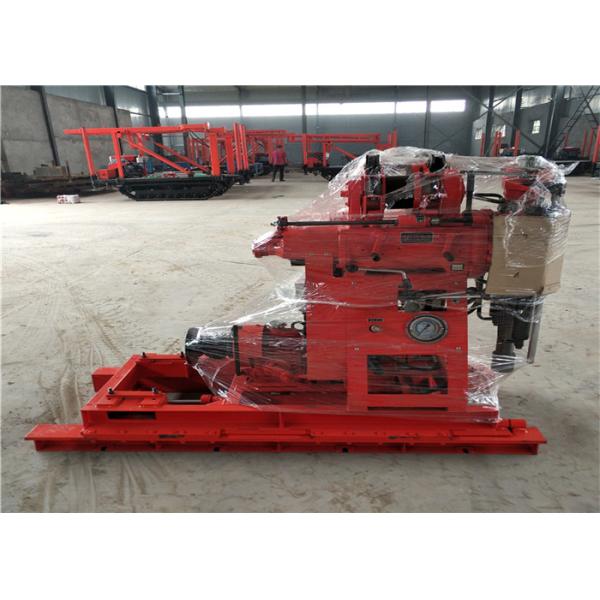

XY-200 water well drilling machine/200m depth well drilling rig
1, XY-200 water well drilling machine has a hydraulic automatic feed mechanism, improve drilling efficiency,
reduce manual labor workers.
2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,
easy to operate, safe and reliable.
3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.
4 The handle centralized, easy to operate.
5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.
| Drilling depth |
200m |
| Maximum open hole caliber |
300mm |
| End hole caliber |
75mm |
| Drill rod caliber |
60mm |
| Drilling angle |
90°~75° |
| Drill weight (No include power) |
525kg |
| Unity machine dimensions |
1433×697×1273m |
| Spindle |
| spindle speed |
71 142 310 620r/min |
| Spindle stroke |
450mm |
| Winch |
| Max.single line hoisting capacity |
15KN |
| Single line lifting speed |
0.41,0.82,1.64m/s |
| steel wire rope caliber |
13m(35m) |
| Mud pump |
| Type |
Horizontal single urn twin-action |
| Displacement |
170/150L/min(diesel or electromotor) |
| Diesle engine |
ZS1115 16.2kw 2200r/min |
| Electric motor |
Y160M—4 11kw 1440r/min |
