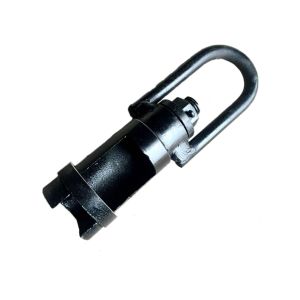

AQ Carbon Steel Elevator Drilling Rig Components
Function and type of elevator Drilling Rig Components
The drill pipe lifter is generally of metal structure. There are several bearings inside. The upper and lower parts can rotate each other. It uses the bearing to rotate the drill pipe and prevent the wire rope from breaking. On the market, the elevator is divided into manual and automatic. The automatic elevator can be connected or disconnected with the drill pipe joint without manual lifting. The lifter has ball clip type, inclined support type and spring type, which is an indispensable and important part of drilling rig.
The structure of the elevator Drilling Rig Components
The elevator is a kind of lifting and pulling device for drilling, and is a tool used to lift and hang the drill pipe when drilling the geological core. It is composed of the elevator body, hook and clamp plate, hanging shaft, etc. according to the structure and shape, the elevator can be divided into ball clip type, inclined support type and spring type. The product features: simple structure, convenient use and safety.
Specifications of the elevator Drilling Rig Components
1.oem product
2.factory price
3.wireline and conventional core barrel are available
Use and maintenance of elevator Drilling Rig Components
(1) The mushroom head must be tightened when using the self detachable or inclined detachable elevator. The steel rope should be loosened before screwing the drill pipe vertical root, and the speed should be reduced when the elevator passes through the drill pipe coupling.
(2) Do not use hand to hold the bottom of the elevator when removing and hanging it, so as to avoid damaging the human body.
(3) Add grease to the grease extractor as required.
(4) When the bell type elevator is used to lift the coarse-diameter drilling tool, the self releasing block shall be installed first to prevent the coarse-diameter drilling tool from falling out from the elevator.
