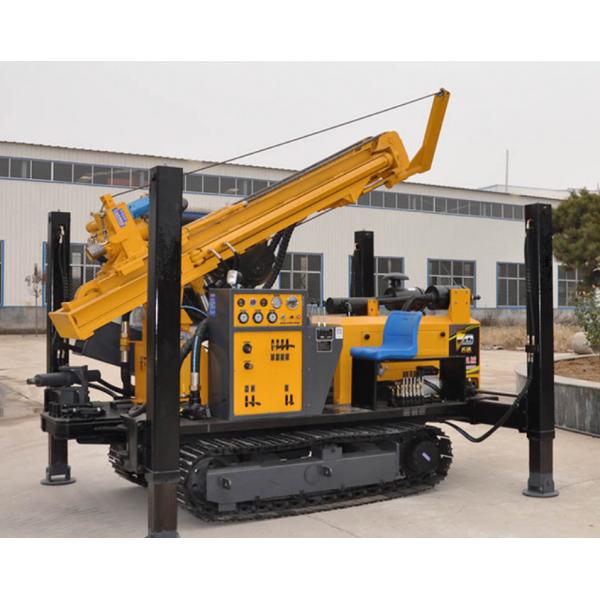

200m Diesel Multifunction Tophammer Deep Well Drilling Rig Machine

  • 1
  • 2

Drilling type : multi-function

Mobility : crawler

Drilling unit : tophammer

Feeding type : hydraulic

Drilling diameter : 140-200mm

name : well drilling machine

Drill rod diameter : 76/89

Swing speed : 45-70rpm

Swing torque : 3500-4800N.M

Drill rod length : 1.5m 2.0m 3.0m

Brand Name : ShiTan

Model Number : ST200

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : USD46000/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000sets/month

Delivery Time : 5 days

Packaging Details : no packing

Contact Now

200m Diesel Multifunction Tophammer Deep Well Drilling Rig Machine
Product Specifications
Attribute Value
Drilling type multi-function
Mobility crawler
Drilling unit tophammer
Feeding type hydraulic
Drilling diameter 140-200mm
Drill rod diameter 76/89
Swing speed 45-70rpm
Swing torque 3500-4800N.M
Drill rod length 1.5m 2.0m 3.0m
ST200 Pneumatic Borewell Machine/200m Deep Diesel Water Well Drilling Rig

This multifunctional drilling rig features a track-mounted or full ground chassis for excellent maneuverability, making it suitable for various challenging terrains and applications including hydrology wells, coalbed methane exploration, shallow shale gas, terrestrial heat, and coal-mine gas exploitation.

Technical Parameters
Parameter Value
Model ST-200
Weight 5.8T
Bore diameter 140-305mm
Drilling depth 200m
Stroke 3.4m
Travelling speed 2.5km/h
Gradeability 30%
Power 65-70KW
Rated pressure 1.7-3.0mpa
Air consumption 17-30m³/min
Elevating capacity 15T
Dimensions 4000*1750*2450mm
Key Features
  • Compact design for access to confined job sites
  • Reliable construction with ample rotary torque and lifting capacity
  • Hoist and winch system capable of lifting up to 1,500kg
  • Dual-speed rotation for varied hole sizes and rock conditions
  • Versatile drilling methods including slurry, air, and air foam drilling
Frequently Asked Questions
What is the main function of our drilling rig?
It has different models used for all kinds of geological conditions, making it the ideal choice for drilling hole station construction.
What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We provide product and packaging photos before final payment.
What is your terms of delivery?
EXW, FOB, CFR, CIF.
How about your delivery time?
Typically 7-10 working days after receiving advance payment. Exact timing depends on product specifications and order quantity.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
