Shitan Machinery ST 50 Small Portable Soil Testing Drilling Rig
ST 50 Soil Testing Drilling Rig Product Information:
This is for drilling wells, general exploration, geophysical prospecting, road and construction exploration, and blasting holes.According to the different layers of the bottom selection of alloys, diamonds and composite drill bits for drilling.mine drilling rig 50m drilling
ST 50 Soil Testing Drilling Rig Parameter:
| Drilling Rig Max. drilling depth |
50m |
| Max .opening diameter |
φ75-φ108mm |
| End hole diameter |
56-75mm |
| Active drill pipe |
50/1000mm |
| Drill pipe diameter |
Φ42mm |
| Drill pipe length |
1000mm |
| Power (diesel engine) |
5.8kw(8P)/2200r/min |
| Size |
1400*600*1600mm |
| Weight |
240kg |
| Spindle |
| Speed |
285-570r/min |
| Torque |
600 N*m |
| Stroke |
1000mm |
| Lifting force |
300KG |
| Pressure |
200KG |
| Drilling Tower (optional) |
| Rated load |
1t |
| Height |
4m |
| Tower leg specifications |
60mm |
| Mud Pump |
| Model |
BW-50 |
| Flow |
50L/min |
| Max.pressure |
1.2Mpa |
| Times |
63/min |
| Inlet hose diameter |
φ55mm*2.5m |
| Outlet hose diameter |
Φ20mm*10m |
ST 50 Soil Testing Drilling Rig Features:
1. Equipped with double oil cylinder hydraulic feeding system, the drilling speed is fast and the work efficiency is high.
2. The drilling rig is equipped with a fixed clamping mechanism and an integrated main rod, which does not need a drill tower and works conveniently.
3. Equipped with 4-speed transmission system. The operator can freely adjust the forward rotation speed through three gears, and is also equipped with a slow reverse gear to facilitate the operator to disassemble the drill pipe and drill tool.
4. The handle is centralized, easy to operate, safe and feasible.
5. It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole
6. Compact structure and small floor area.
7. It has strong decomposition ability and is easy to move. It is suitable for working in hilly, mountainous and other complex terrain
ST 50 Soil Testing Drilling Rig Applications:
Mainly in small sampling drilling equipment in plain, mountainous areas and areas with inconvenient transportation and energy. It is now used in railway, water conservancy and other construction projects, geological core drilling and small grouting holes in field mountainous areas
Product Tags:
|
|

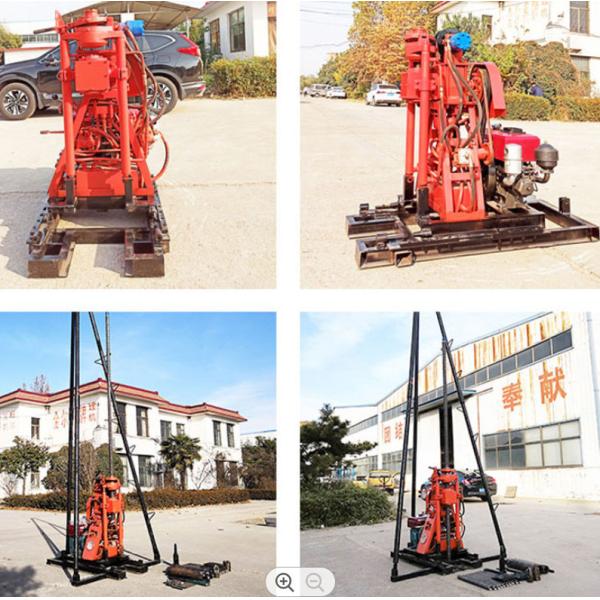

Shitan ST 50 Small OEM Portable Borewell Machine Images
|
